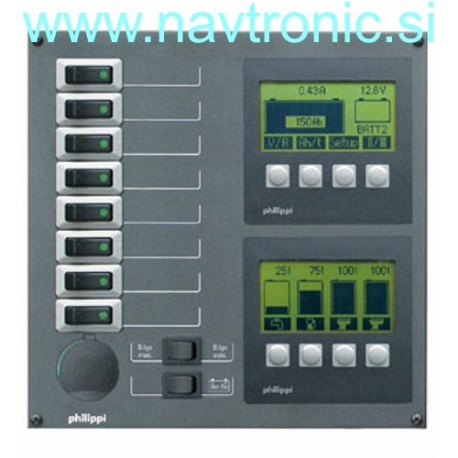

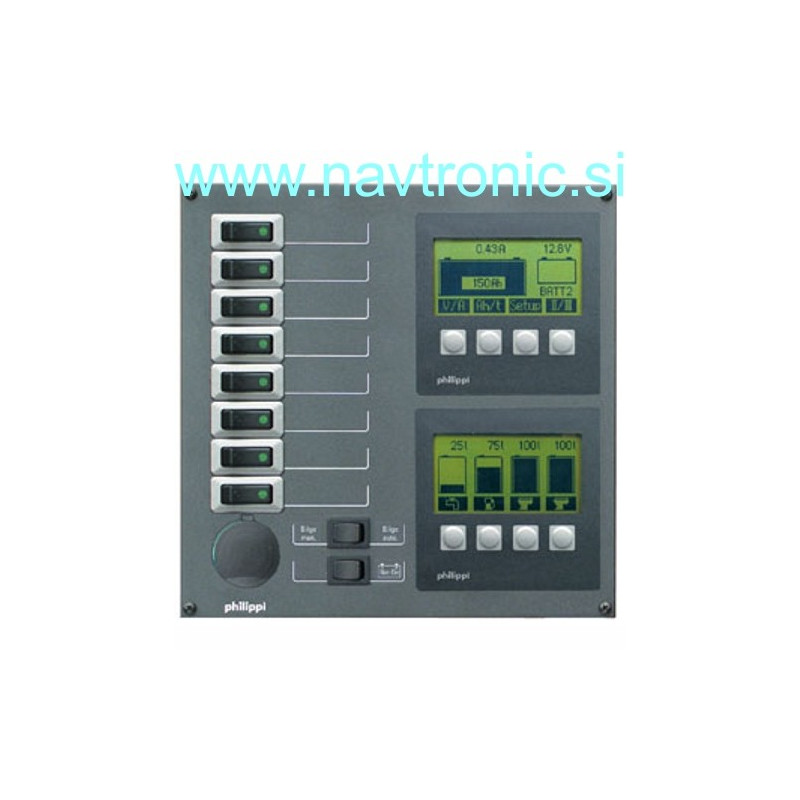

DISTRIBUTION PANEL STV 228

The power distribution panels series 200, combine user comfort through a simple design and technical dependability. Each circuit is switched and protected by a thermic circuit breaker with its own rocker switch (ETA 3130). It contains an integrated light diode that shows circuit status. In case of short circuit, the breaker switches automatically off and the light is off. Once the problem is corrected, the breaker can be manually pushed to ON position. The circuit breaker has an intern mechanism that will not react (turn on) during a problem in circuitry, there by protecting circuits. Self adhesive labels are included.

Features:

• Order no.: STV 228
• Voltage: 12V
• Panel color: gray
• Color switches: silver / black
• Color LEDs on the switch: green
• Switch: 8x ETA with thermic contact breakers 10A
• Battery monitor BCM1 - digital display of the voltmeter (2 banks of batteries) and ampermeter (1 bank of batteries) with 2 control switches 0-1, 1-0-2, 1-2 for individual use
• 12V socket
• Weight: 1.0 kg
• Overall dimensions (WxHxD) mm: 210 x 210 x 70
• Warranty: 2 years
