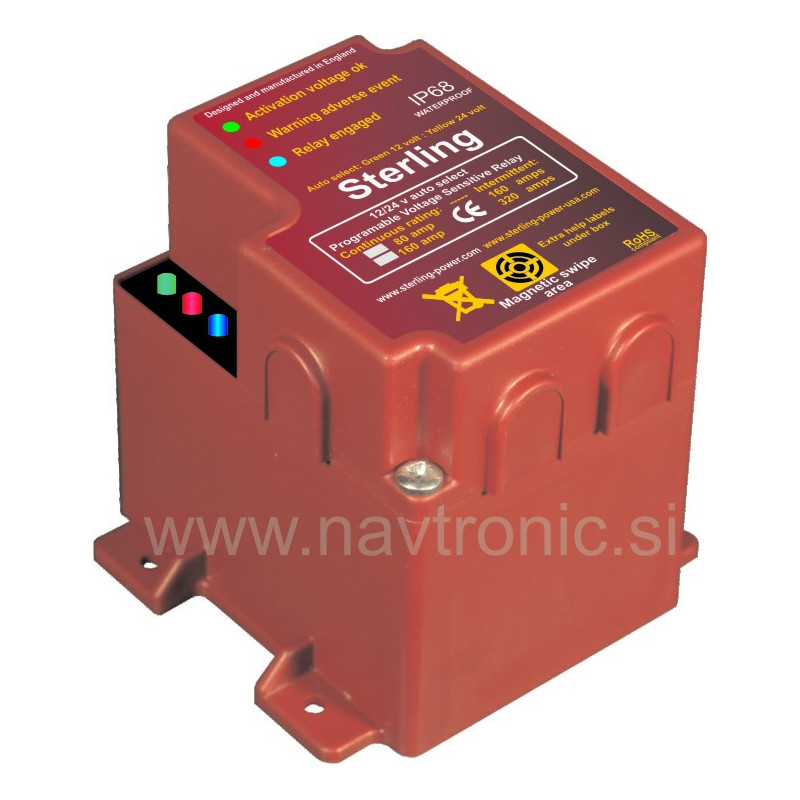

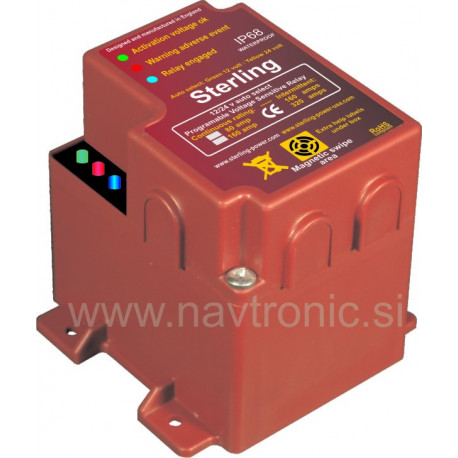

VSR B - DIGITAL - 80A/160A - 12V/24V
New product
Sterling Power VSR B - Digital (Voltage sensitive relay) with auto selection between operation voltage 12V or 24V, available are models 80A or 160A. The Digital (Voltage Sensitive Relays) VSR B offer the user a wide range of switching voltages ensuring the open circuit voltage is above the discharge voltage of the exotic battery (AGM /Gel/Lithium) unlike that of the analogue.
More info
The digital unit also offers both uni and bidirectional charging. Most VSRs are set to bidirectional charging which allows the voltage at either the input or the output stud to engage or disengage the relay. Unidirectional can be used if you wish to activate the relay from the input stud only.
There is also an algorithm built into the digital relays which prevents unnecessary switching of the relay. The quiescent current of the digital relays is 1mA which works out at about 1A per week.
In the lid of the digital VSR is a magnet which can be used to adjust the settings of the VSR and does not compromise the waterproofing of the product.
Features:
- Model: VSRB 80/160
- Digital algorithm switching delay
- Auto select 12V and 24V unit
- Adjustable switching voltage settings
- High voltage disconnect
- Low voltage warning
- Anti relay contact arching protection
- High quality brass connections
- Relay electrical override ability
- 3 LED information rail
- Adjustable uni or bidirectional
- Reverse polarity protection
- Warranty: 2 years
Specifications:
~Power:
- Operation voltage: 12V/24V
- Continuous current: 80A/160A
~Physical:
- IP68 waterproof
- Weight: 0,5 kg
- Overall dimensions (WxHxD) mm: 90 x 90 x 88
