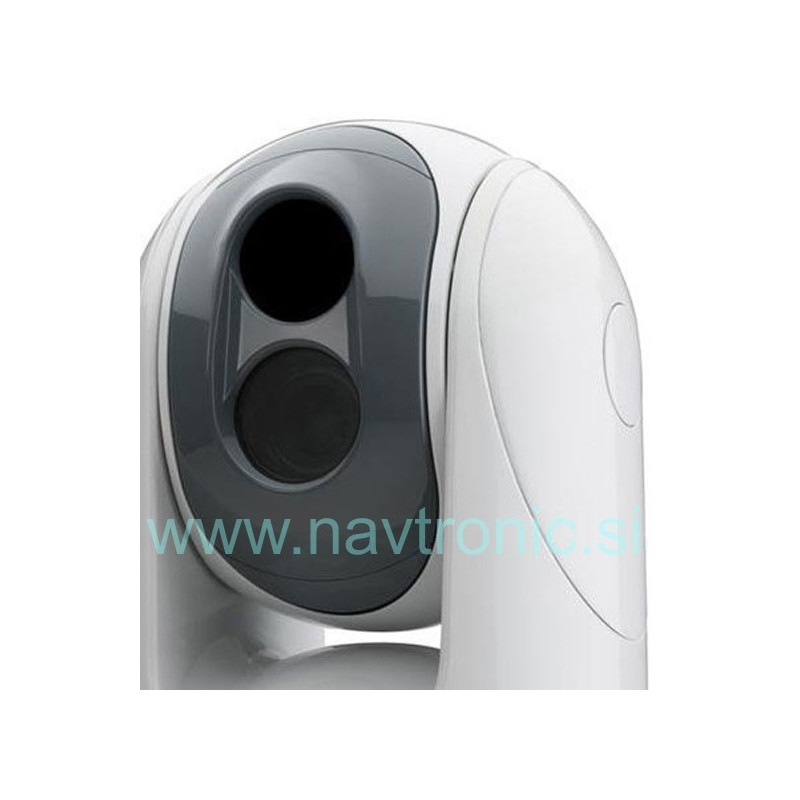

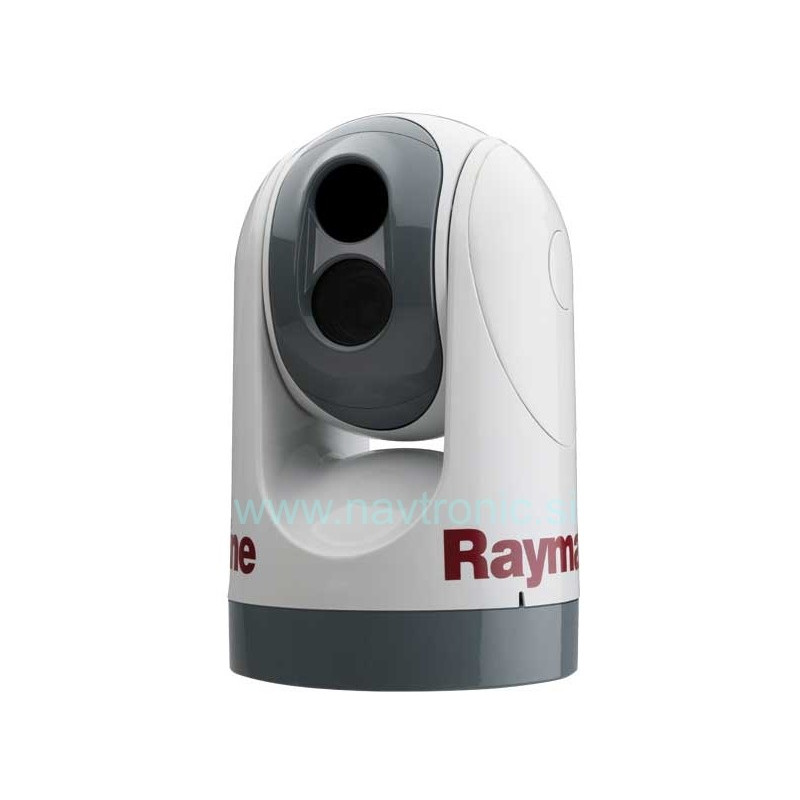

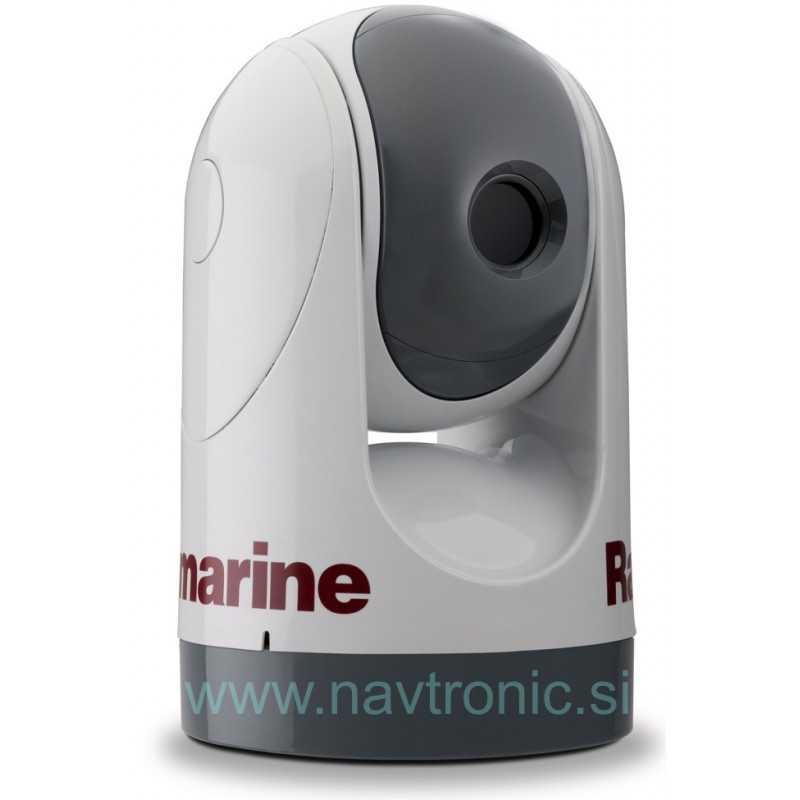

DAY/NIGHT VISION THERMAL CAMERA T400

Thermal night vision cameras make navigation safer with clear video that helps you to see hazards like buoys, floating debris, rocks, land, bridges, and other vessels night and day. Thermal night vision cameras from Raymarine are easy to use, and require no training. The images you get from thermal night vision cameras are intuitive and instantly easy to understand.

Powerful, flexible, and built to last, T Series is Raymarine's premium line of maritime thermal night vision cameras. Available with a variety of sensors and resolutions to meet a wide range of maritime navigation, collision avoidance, security, and search and rescue needs, Raymarine T Series thermal night vision cameras are easy to install, integrate, and operate.

Raymarine T Series thermal night vision cameras create pictures by detecting and displaying small changes in heat, not light. Even the heat left on a wall by a person's hand has enough thermal energy to show up clearly on a Raymarine thermal night vision camera. Everything generates thermal energy, even ice! And although this energy is invisible to the naked eye, Raymarine thermal night vision cameras detect it and turn it into video that is easy to understand, allowing you to see more and see further than you could with your eyes.

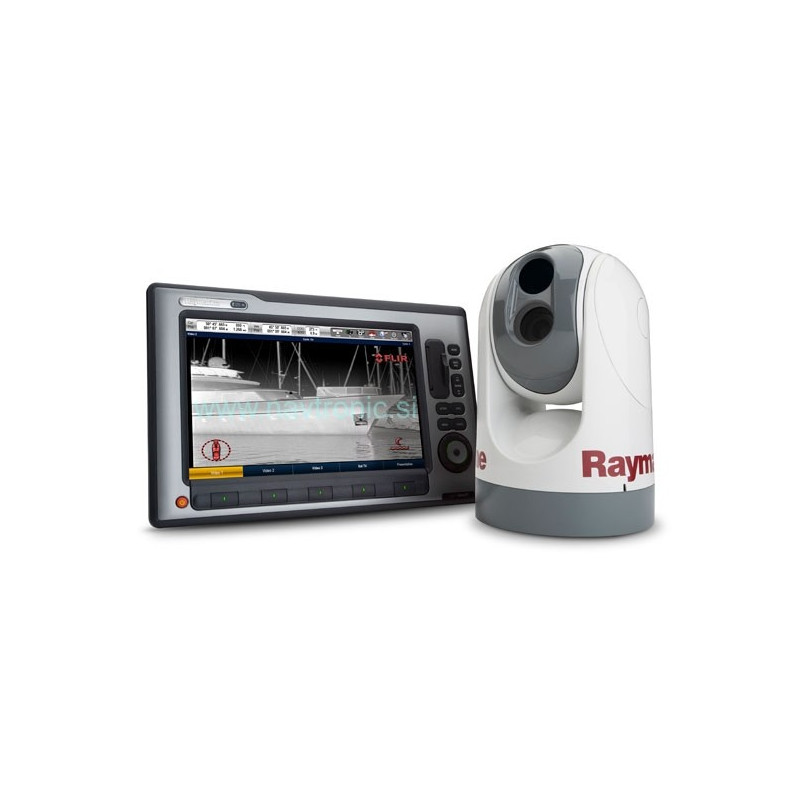

The Raymarine T Series thermal night vision cameras are designed to seamlessly integrate with Raymarine E Series Widescreen Multifunction Displays and Raymarine G Series Command Center navigation systems. Using SeaTalkHS networking, the camera's pan, tilt and zoom controls can be actuated by touch screen (Raymarine E Series Widescreen) or using the Multifunction Display's keypad and rotary controls (Raymarine E Series Widescreen or Raymarine G Series).

A convenient thermal camera application is available right from the MFD's home screen. The application can be displayed full-screen, or in a window alongside other navigation data such as electronic charts or radar. Best of all, the camera system's controls are available at any Raymarine E Series Widescreen or Raymarine G series display on the boat, giving skippers the ability to navigate with thermal imagery from the main helm or a remote navigation station.

The ergonomic controller provides ready access to all critical system functions and smooth, effortless control, even in rough seas.

Features:

• Safer navigation
• Life-saving potential in man-overboard situations
• Enhanced visibility and situational awareness at night
• Easy docking in low light
• Iceberg detection and avoidance
• Boat security and surveillance
• Rugged, fully marinized construction to withstand harsh conditions
• Window de-ice heaters for clear vision even in ice and snow
• Proprietary, patent-pending image enhancement algorithms; Digital Detail Enhancement (DDE) to bring out faint image details that you might otherwise miss
• Standard NTSC video outputs that can be viewed on any monitor with an auxiliary video input
• Mounting options; Installer can mount in either camera up or camera down orientation
• Pre-set gain adjustments for optimal image quality in various conditions
• On screen icons show what the camera's doing and where it's pointing
• Full 360º pan and ± 90º tilt capability
• Standard and high-resolution thermal night vision camera options.
• 2x zoom on all models; the high resolution option provides an additional 4x zoom
• 320 x 240 (T400/T403) standard resolution, or 640 x 480 (T450/T453/ T460/T463) high resolution format providing improved image detail and range performance
• Warranty: 3 years (registration on the website)

Specifications:

~Camera:

• Video Resolution: 320 x 240 (QVGA) (T400/T403)
• Video Resolution: 640 x 480 (VGA) (T450/T453/ T460/T463)
• Field of View: 24º x 18º (NTSC) (T400/T403)
• Field of View: 25º x 20º (NTSC) (T450/T453)
• Field of View: 12º x 10º (NTSC) (T460/T463)
• Digital Zoom: 2x (T400/T403)
• Digital Zoom: 2x and 4x (T450/T453/ T460/T463)
• Range performance (detect person/detect small vessel): 450m/1280m (T400/T403)
• Range performance (detect person/detect small vessel): 820m/2200m (T450/T453)
• Range performance (detect person/detect small vessel): 1200m/3200m (T460/T463)

~Connections:

• F Type Connector with F to BNC adaptor included for video output
• NTSC or PAL

~Power:

• Nominal voltage: 12V/24V
• Operating voltage range: 9-30V/DC
• Power consumptions: 25W nominal; 50W maximum

~Physical:

• Waterproof: IPX6
• Weight camera: 4,1 kg
• Weight Joystick Control Kit: 0,3 kg
• Overall dimensions camera (WxHxD) mm: 89 x 284 x 89
• Overall dimensions Joystick Control Kit (WxHxD) mm: 90 x 141 x 40
