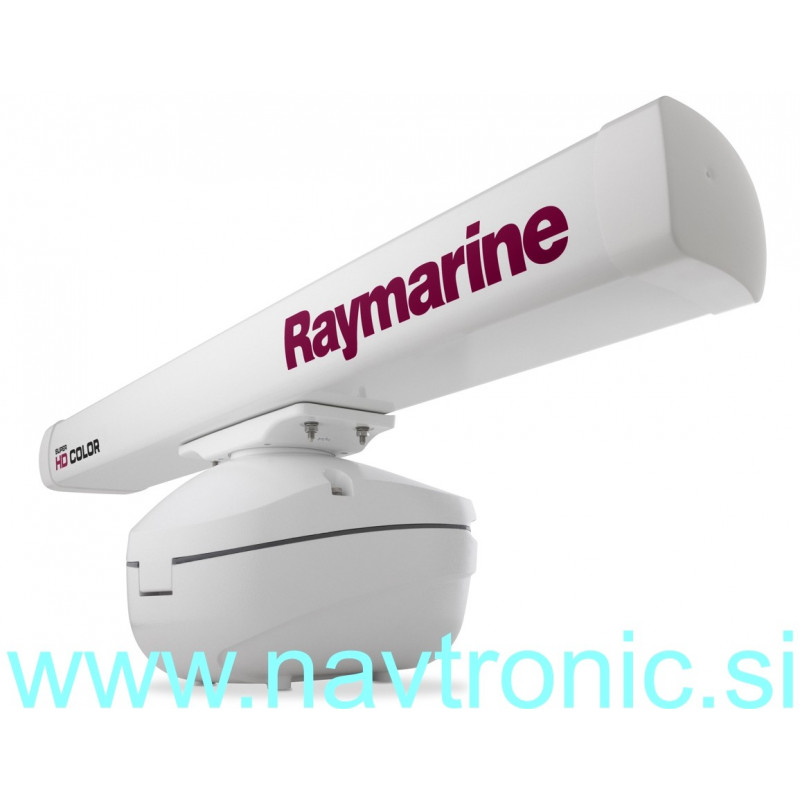

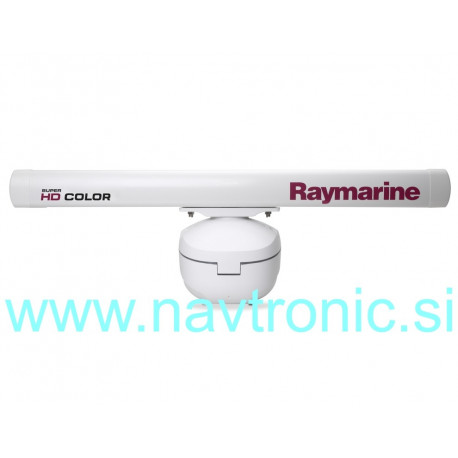

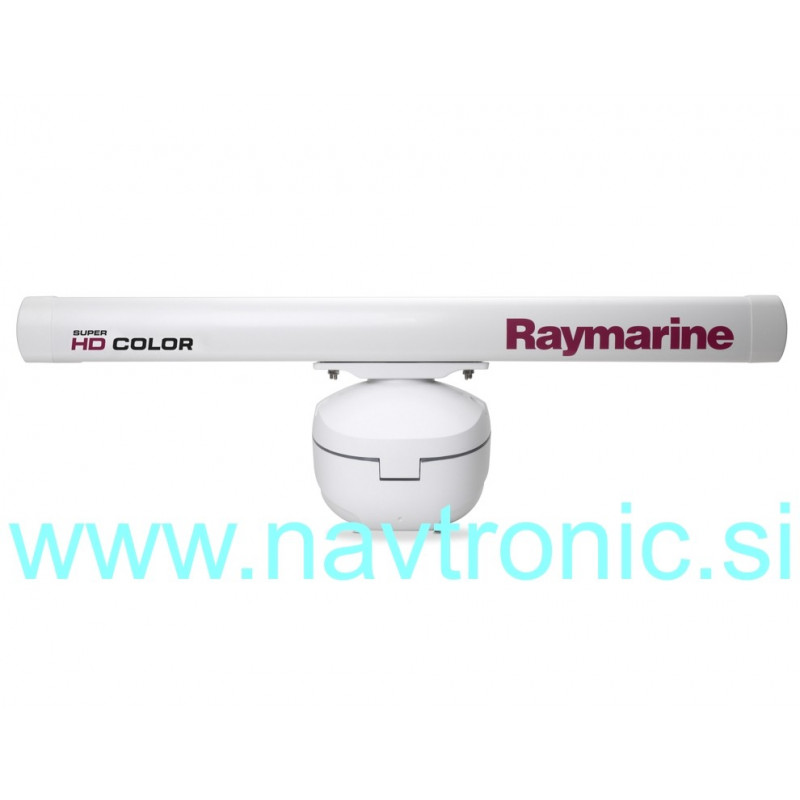

RA3048SHD 4KW 48” HD SUPER COLOR OPEN ARRAY

Raymarine’s Super HD Color technology brings radar users the power of digital signal processing with a truly adaptive transmitter and receiver that automatically adjusts to changing environmental and sea conditions. Super HD Color radar delivers a dramatically clearer radar picture with crisp, well-defined contact echoes and life-like target presentation. Super HD Color radar’s wide receiver bandwidth and high-speed digital processing detect weak and distant contacts that are invisible to traditional analog radar systems, while virtually eliminating clutter, noise and false echoes.

The RA3048SHD Open Array Radar Scanner combines Raymarine’s 48” open array antenna with a powerful 12kW Super HD Color antenna pedestal with a 72 mile maximum range. The system also includes the VCM100 voltage converter, 15-meter digital pedestal cable, mounting hardware, mounting template and instructions. SeaTalkhs network compatible for Raymarine Multifuncton navigation systems including:

• G-Series (GPM400)
• E-Series Widescreen (E90W, E120W, E140W)
• C-Series Widescreen (C90W, C120W, C1440W)
• E-Series Classic (E80, E120).
• Not compatible with C-Series Classic (C70, C80, C120.)

Features include:

• Order no.: T52086
• Exclusive Raymarine Super HD Digital radar technology
• Adaptive digital receiver automatically adjusts to changing environmental and sea conditions for a dramatically clearer picture
• Fast digital receiver processor
• Delivers 256 color target levels
• Dual range capable
• Thin interconnect cable
• Supplied with remotely mounted VCM100 voltage converter module
• 12 or 24 volt operation
• Warranty: 3 years (registration on the website)

Specifications:

• Voltage: 10.7-32 volts for 12v, 24v systems
• Power consumption (typical) watts: 110W, Standby: 30W
• Operating temperature range: -10°C to +55°C D6
• Non-operating temperature range: -20°C to +70°C C6
• Waterproofing standard: IPX6
• Scanner power and type: 12kW Super HD Color
• Antenna Size: 4' (48")
• Scanner cable length: 15m standard (5m, 10m & 25m option)
• Pedestal Weight: 26,0 kg
• Dimensions: (WxHxD) mm: 1330 x 402 x 324
